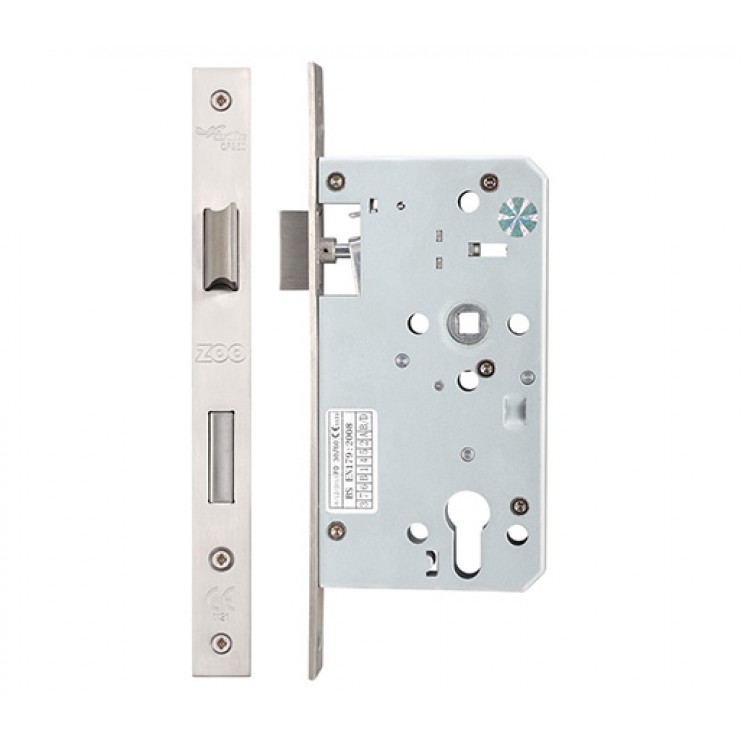

ZDL7260ESC Escape Lock - 72mm c/c

Product Code: ZDL7260ESC
In Stock: Yes

Key Features

  • BS EN 12209 2003 : Grade 3
  • BS EN 179 : 2008
  • 60mm Backset
  • Square Profile - SS304 Forend
  • SS304 Latchbolt & Deadbolt
  • Anti-Rattle Strike
  • Grip Tight Follower
  • 72mm c/c
  • Compatible Levers Include : FB030, VS030, VS070, VS080, ZAA030, ZAA080, ZCS030, ZCS080, ZCS2030, ZCS2080, ZG4S030, ZPS030, ZPS080



{configurable}

{configurable_select}

{/configurable}

Specifications:

ZDL7260ESC DATA SHEET

The following are measurements and dimensions for the above product. Please measure the intended area to ensure the product is suitable.

Product Codes and Sizes:

  • ZDL7260ESC
  • Face Plate Size 235mm High x 22mm Wide
  • Body Size 165mm High x 85mm Wide
  • CE Marked and Certifire Approved
  • Suitable for 30/60 Min Fire Doors
  • Tested To BS EN 12209 : 2003 Grade 3
  • Suitable For Commerical Use

Product Finishes:
